V6 300-200HP

DF250 / DF225 / DF200

DF250

This compact and high performance engine delivers the ultimate power and performance.

A Powerful Advantage

Get the advantage of the most advanced 4-stroke outboard technology in the industry with features like; Multi-Stage Induction, Variable Valve Timing, and a powerful 32-bit Electronic Fuel Injection computer working together to optimize low- and top-end torque. The industry's narrowest V block which offers a well-balanced design that fits today's boats. Also, two-stage gear reduction with the lowest gear ratio in its class for marvelous acceleration and top-end speed.

Lower Unit with Powerful Gear Ratio

The lower unit is designed with a powerful 2.29:1 gear ratio. This allows the torque generated by these engines to turn a larger prop that can move a lot of water.

Slim and Compact Design

Our exclusive 55-degree V block and proven offset driveshaft give Suzuki's V6 4-strokes a narrow, compact design that is the perfect fit for a wide range of today's most popular boats. This design moves the center of gravity forward for better balance and less vibration.

Power in an Instant

With our 3.6-liter displacement computer controlled electronic fuel injection and powerful 2.29:1 final drive gear ratio, the DF250, DF225, and DF200 deliver maximum torque across the powerband. You'll always have plenty of power the moment you ask for it. And our high-output 54A alternator provides plenty of electrical power for electronics.

Award Winning Technology

This was Suzuki's fourth Innovation Award and proof that Suzuki leads the way in fuel-injected 4-stroke outboard motors.

PERFORMANCE
  • Offset Driveshaft / 2 Stage Gear Reduction
  • VVT (Variable Valve Timing)
  • Multi-stage Induction
  • 2-stage Gear Reduction
DURABILITY & RELIABILITY
  • Self-adjusting Timing Chain
  • Suzuki Water Detecting System
EASE & COMFORT
  • Tilt Limit System

Nobody Delivers More Performance-Enhancing Features Than Suzuki.

Continuously Variable Valve Timing

The DF250 incorporates Suzuki's advanced Variable Valve Timing (VVT). VVT is used to alter intake timing with the camshaft to optimize camshaft timing for low to mid-range operation. Combined with the outboard's aggressive cam profile VVT delivers greater low to mid-range torque for powerful acceleration.

Continuously Variable Valve Timing

Multi Stage Induction

Suzuki's Multi-Stage Induction system is used to increase engine performance. Each cylinder in this system is equipped with a set of short and long intake manifolds that are utilized in relation to engine speed. At lower rpm the longer pipes deliver an optimum volume of fresh air into the chamber, improving combustion and boosting low-end torque. At higher rpm, the valve on the shorter, direct intake pipe opens up letting air in the chamber directly boosting high-speed power output. (DF250/225).

Picture of Multi Stage Induction
Diagram of Multi Stage Induction

Multi Stage Induction

Durability & Reliability

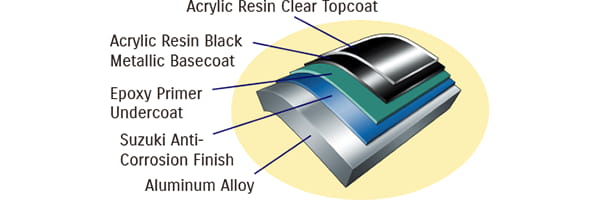

Suzuki's formulated Suzuki Anti-Corrosion Finish starts with a special finish that offers maximum bonding of the finish to the Suzuki Aluminum Alloy. To this an epoxy primer undercoat, black metallic finish, and clear acrylic fiber finish are added to create an effective treatment against corrosion. This finish can be found on all Suzuki line-up models.

Durability & Reliability

Computer Efficient Fuel Injection

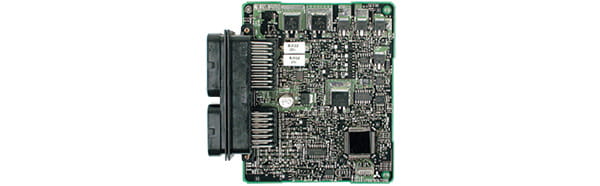

Advanced multi-point sequential electronic fuel injection monitored by the 32-bit onboard computer keeps Electronic Fuel Injection performance fine-tuned. At the same time, fully transistorized ignition provides a hotter spark with less electronic interference.

Computer Efficient Fuel Injection

Compact Designs

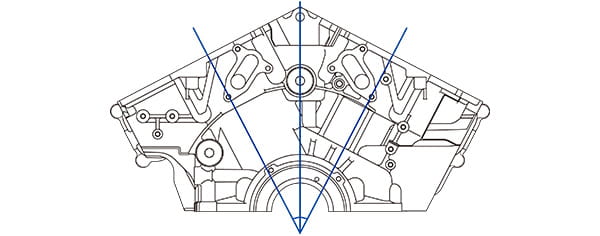

Thanks to our exclusive 55° bank angle and offset driveshaft layout, you get power and performance from a sleek, compact outboard that’ll look great on any transom – especially yours.

Compact Designs

Cleaner, More Efficient Operation

Suzuki's advanced four stroke technologies deliver cleaner, more efficient operation that conforms to the Recreational Craft Directive (RCD) Standards and has received a three-star rating from the California Air Resources Board (CARB).

Cleaner, More Efficient Operation

Largest Gear Reduction Ratio

Suzuki's two-stage gear reduction results in a 2.29:1 gear ratio. We swing a large diameter prop designed to move a lot of water – and a lot of boat.

MODEL DF250 *3
RECOMMENDED TRANSOM HEIGHT mm L: 508 *4, X: 635, XX: 762
STARTING SYSTEM Electric
WEIGHT (KG) ** L: 264 *4, X: 275, XX: 284
ENGINE TYPE DOHC 24-Valve
FUEL DELIVERY SYSTEM Mutli-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS V6 (55-degree)
PISTON DISPLACEMENT (cm3) 3,614
BORE X STROKE (mm) 95 x 85
MAXIMUM OUTPUT (kW) 184.0
FULL THROTTLE OPERATING RANGE (rpm) 5,500-6,100
STEERING Remote
OIL PAN CAPACITY (Lit.) 8.0
IGNITION SYSTEM Fully-transistorized
ALTERNATOR 12V 54A
ENGINE MOUNTING Shear Mount
TRIM METHOD Power Trim and Tilt
GEAR RATIO 2.29:1
GEAR SHAFT F-N-R
EXHAUST Through Prop-Hub Exhaust
PROPELLER SELECTION (Pitch)*2 All propellers are the 3-blade type 15
MODEL DF225 *3
RECOMMENDED TRANSOM HEIGHT mm L: 508 *4, X: 635, XX: 762
STARTING SYSTEM Electric
WEIGHT (KG) ** L: 264 *4, X: 275, XX: 284
ENGINE TYPE DOHC 24-Valve
FUEL DELIVERY SYSTEM Mutli-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS V6 (55-degree)
PISTON DISPLACEMENT (cm3) 3,614
BORE X STROKE (mm) 95 x 85
MAXIMUM OUTPUT (kW) 184.0
FULL THROTTLE OPERATING RANGE (rpm) 5,500-6,100
STEERING Remote
OIL PAN CAPACITY (Lit.) 8.0
IGNITION SYSTEM Fully-transistorized
ALTERNATOR 12V 54A
ENGINE MOUNTING Shear Mount
TRIM METHOD Power Trim and Tilt
GEAR RATIO 2.29:1
GEAR SHAFT F-N-R
EXHAUST Through Prop-Hub Exhaust
PROPELLER SELECTION (Pitch)*2 All propellers are the 3-blade type 15
MODEL DF200 *3
RECOMMENDED TRANSOM HEIGHT mm L: 508 *4, X: 635, XX: 762
STARTING SYSTEM Electric
WEIGHT (KG) ** L: 264 *4, X: 275, XX: 284
ENGINE TYPE DOHC 24-Valve
FUEL DELIVERY SYSTEM Mutli-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS V6 (55-degree)
PISTON DISPLACEMENT (cm3) 3,614
BORE X STROKE (mm) 95 x 85
MAXIMUM OUTPUT (kW) 184.0
FULL THROTTLE OPERATING RANGE (rpm) 5,500-6,100
STEERING Remote
OIL PAN CAPACITY (Lit.) 8.0
IGNITION SYSTEM Fully-transistorized
ALTERNATOR 12V 54A
ENGINE MOUNTING Shear Mount
TRIM METHOD Power Trim and Tilt
GEAR RATIO 2.29:1
GEAR SHAFT F-N-R
EXHAUST Through Prop-Hub Exhaust
PROPELLER SELECTION (Pitch)*2 All propellers are the 3-blade type 15
  1. Dry weight: not including propeller and engine oil,
  2. Please inquire at your local dealer for details of the propeller,
  3. Counter Rotation Model Available,
  4. DF200 only
The appearance, colors, and equipment of outboard motors may differ according to market and grade. Specifications may change without prior notice.

*Manufacture data
