V6 300-200HP

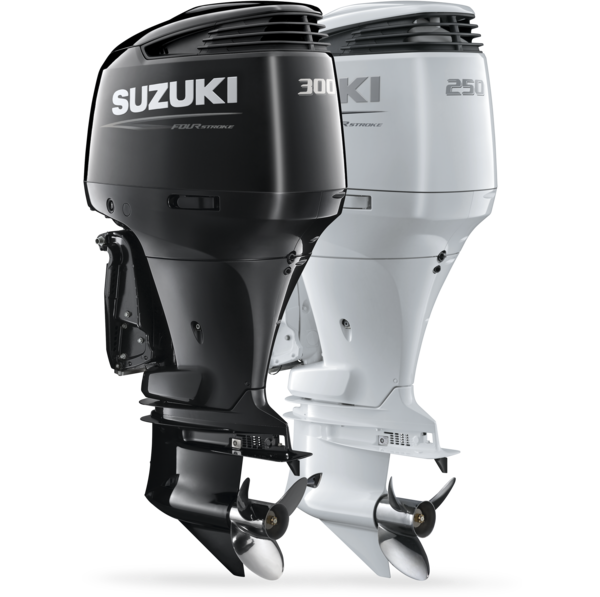

DF300AP / DF250AP

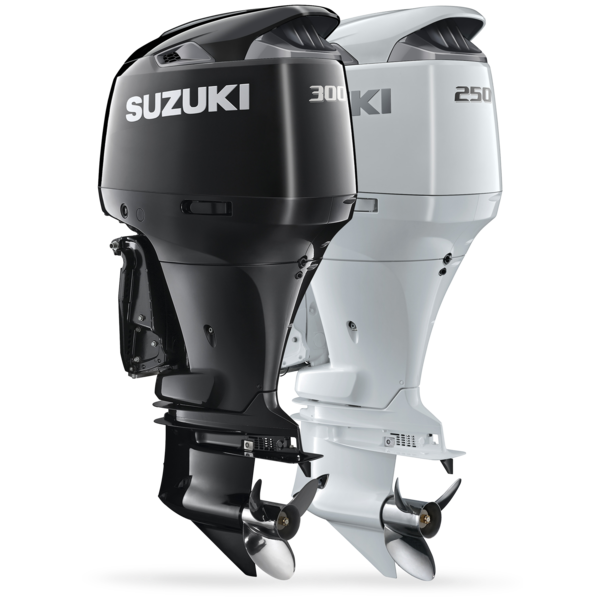

DF300AP

Award-winning and exciting outboards, each one precision engineered to give you the power and performance you need, when you need it.

POWERFUL V6 & IN-LINE 4

Proven Technology

By using our advanced technologies these V6 outboards deliver superior performance. They have dual overhead cam (DOHC) powerheads with four valves per cylinder and multi-point sequential electronic fuel injection. The 55° V-block design and offset driveshafts contribute to making them remarkably compact. The DF300AP, DF250AP and DF250 deliver high performance with our Variable Valve Timing (VVT), by maximising torque in the low/mid-range.

New Suzuki Selective Rotation

In addition to our drive-by-wire system (Suzuki Precision Control) and the Lean Burn Control System, the DF300AP and DF250AP feature Suzuki's Selective Rotation.

In its standard form, the outboard will operate in regular clockwise rotation, using the forward gear. Now, by changing the gear-shift mode and adding a counter rotational propeller, the same outboard can operate in counter rotation mode (anti-clockwise).

In counter rotation mode the power is transmitted through the reverse gear, which has been changed to give it the same characteristics as the forward gears. This is a world first in outboard motor technology.

Suzuki Receives Seventh NMMA Innovation Award

When it comes to leading edge technology, Suzuki has time and again, delivered technological advancements that put Suzuki outboards at the forefront of advanced outboard motor design. Recognizing the DF300AP as the most innovative outboard introduced over the past year, the National Marine Manufacturers Association (NMMA) awarded the DF300AP with its prestigious NMMA Innovation Award for 2012 marking an unprecedented seventh win for Suzuki and following last year's award with the new DF50A/40A, a second, unprecedented back-to-back win for Suzuki.

The number of awards that Suzuki has garnered over the years reflects the company's strong desire to provide its customers with the very best, most innovative and most reliable products possible and acknowledges the outstanding work of the company's engineering staff.

PERFORMANCE
  • Offset Driveshaft / 2 Stage Gear Reduction
  • VVT (Variable Valve Timing)
  • 2-stage Gear Reduction
ECOLOGY & ECONOMY
  • Lean Burn
DURABILITY & RELIABILITY
  • Self-adjusting Timing Chain
  • Two-way Water Inlet
  • Suzuki Water Detecting System
EASE & COMFORT
  • Suzuki Selective Rotation
  • Tilt Limit System
  • Suzuki Precision Control
  • Suzuki Troll Mode System

The World’s First Selective Rotation Outboards

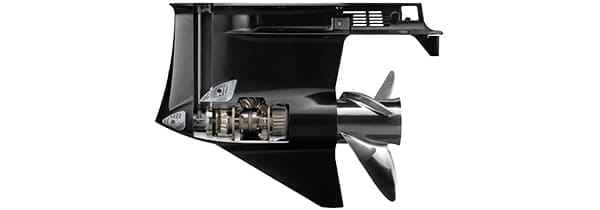

NEW LOWER UNIT

Compared to the original DF300, the biggest changes you'll find on these outboards are in the lower unit, which was redesigned for the Suzuki Selective Rotation system—the world's first integration of regular and counter-rotation models into a single unit. The system consists of a new drive gear layout in the lower unit that allows the outboard to operate in either regular or counter-rotation mode, and a switch that connects to a circuit in the engine compartment that engages the counter-rotation mode.

Like the DF300, the DF300AP/250AP utilizes an aggressive final drive ratio of 2.08:1 allowing it to turn a 406mm (16-inch) diameter propeller available in various pitch size for optimum performance on a wide variety of boats. Changes to gear designs provide greater durability, and adding a two-way water inlet changes water flow into the cooling system for increased cooling efficiency.

New Lower Unit

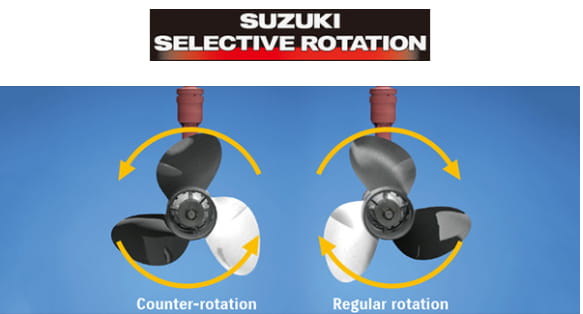

SUZUKI SELECTIVE ROTATION

In multi-outboard installations on large boats, a counter-rotation outboard is usually paired with a regular rotation model to help keep the boat traveling on an even keel and in a straight line. The DF300AP/250AP is built with special counter rotating gearing in the lower unit, which causes the prop to rotate in the opposite direction. Suzuki Selective Rotation eliminates the need to purchase a dedicated counter-rotation outboard by using a special switch that when connected to a circuit inside of the engine compartment, turns a regular rotation outboard into a counter-rotation model with a counter rotational propeller.* This industry first is made possible through a special, unified design of gears, shaft, and bearings in the lower unit that are designed to operate reliably and efficiently in either regular or counter-rotation directions.

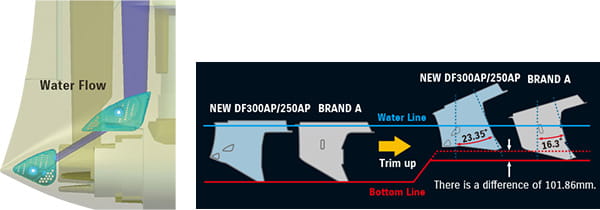

TWO-WAY WATER INLET

The engine's cooling system relies on water supplied through low water intakes located on the lower unit. Utilizing this dual low water inlet configuration increases water flow into the lower unit, which delivers greater cooling efficiency. Positioning the forward inlet at the gear case nose delivers a greater water supply especially at high speeds. The second inlet is also positioned lower allowing the DF300AP/250AP to operate in shallow water conditions.

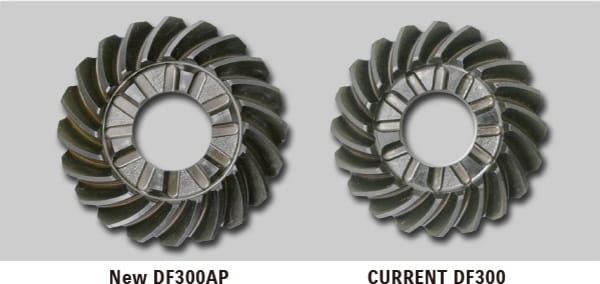

SUPERIOR DURABILITY

With the addition of Suzuki Selective Rotation, gears in the lower unit were redesigned using a different alloy and slightly larger diameters delivering greater rigidity. The gears are specially heat treated creating gears that are highly durable.

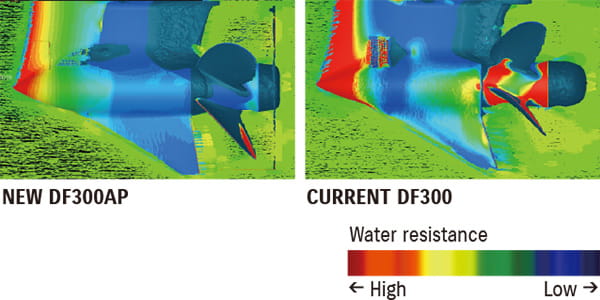

NEWLY DESIGNED LOW DRAG-GEAR CASE

The DF300AP/250AP features a redesigned low drag gear case developed to accommodate the new gears utilized in the Suzuki Selective Rotation system.

The case itself is actually larger than the previous model to provide increased gear durability, however it is designed with a smoother, more hydrodynamic shape that allows it to move through the water with less drag and greater efficiency. Areas with the highest drag are indicated in red in the illustrations below. The comparison shows that the new design allows the lower unit to slice through the water with less drag.

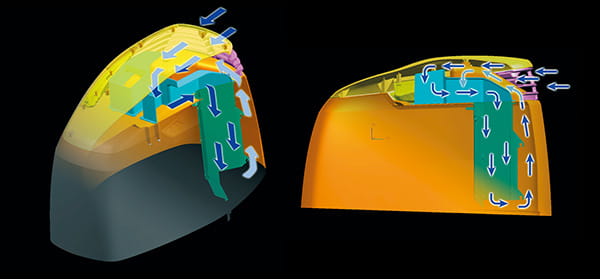

LARGE AIR INTAKE WITH WATER SEPARATOR

The DF300AP/250AP is designed with a large air induction port to maximize airflow into the engine in order to obtain maximum power output. The increased airflow produces more low- to mid-range torque and provides a wide power band that is necessary in an outboard engine. Suzuki also designed the system with a water separator, which aids in keeping water out of the electronic throttle body and a heat shield to keep intake air from being heated by the engine.

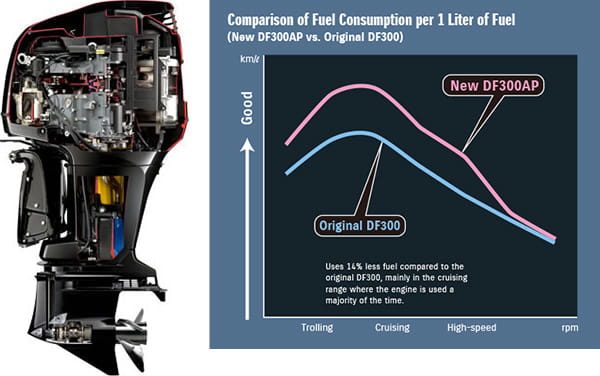

SUZUKI'S LEAN BURN CONTROL SYSTEM

Suzuki's innovative Lean Burn Control System was first introduced on the DF90A/80A/70A to great acclaim from boaters and the media alike. It predicts fuel needs according to operating conditions allowing the engine to run on a more efficient fuel mixture through the use of a lean air-fuel ratio. It delivers its benefits over a wide operating range, providing significant improvements in fuel economy from low-speed operation into the cruising range. Combining this system with the Suzuki Precision Control electronic throttle and shift system allows the operator precise control over engine RPM for improved fuel economy over a wider operating range. This combination also delivers smooth power transitions throughout the entire RPM range. In-house testing shows that while cruising, the DF300AP is 14% more economical than the original non-Lean Burn DF300 without sacrificing any power of the original DF300.


Data used in the graphs were obtained through in-house testing under uniformed conditions. Results will vary depending upon operating conditions (boat design, size, weight, weather, etc.)

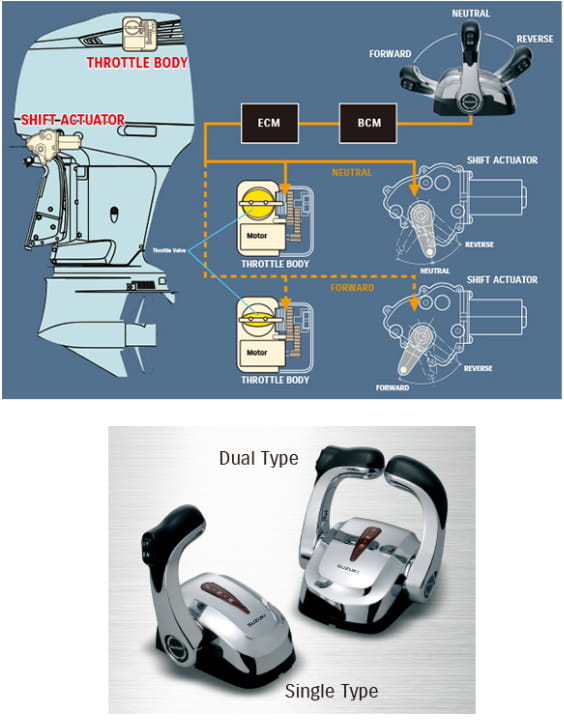

SUZUKI PRECISION CONTROL (ELECTRONIC THROTTLE AND SHIFT SYSTEMS)

Suzuki Precision Control is a technologically advanced computer-based control system that replaces the mechanical control cables found in conventional control systems with electronic wiring that eliminates the source of friction and resistance. While you enjoy smooth throttle and shift operation with minimal friction, the system's computer is processing and transmitting commands in real-time to actuators at the engine that deliver precise throttle control with smoother, decisive shifting. This is most evident in the low rpm range where operation is noticeably smooth and accurate. When combined with Suzuki's Lean Burn Control System it allows control of fuel and air flow to boost the limit of the controllable revolution range improving fuel economy over a wide operating range. Suzuki Precision Control also features built-in systems that help guard the engine and drive against damage due to mishandling, and its design and simple wiring make installation easy, reducing the time required for rigging and adjustment. The system offers precision control for single, twin or triple installation as well as dual station operation.

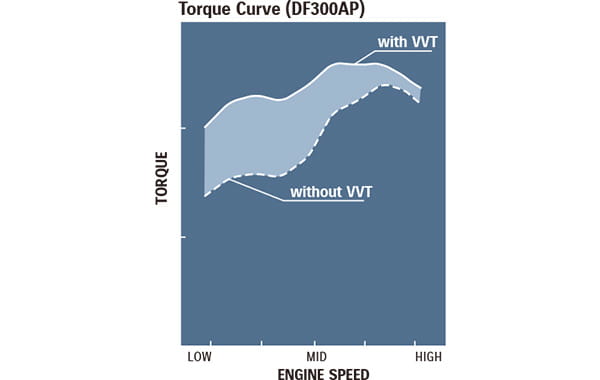

VARIABLE VALVE TIMING

Suzuki's engineers designed the 4.0-liter V6 engine with an aggressive cam profile that delivers maximum output and performance at high rpm. In coupling this cam profile with Suzuki's advanced Variable Valve Timing (VVT), the DF300AP/250AP delivers the additional torque that outboards need for accelerating in the low to mid-range. VVT achieves this by adjusting the timing of the intake valves, allowing them to open before the exhaust valves are fully closed, creating a momentary overlap in the timing where both sets of valves are open. Using VVT, this overlap can be increased or decreased by altering intake timing with the camshaft resulting in optimum timing for low and mid-range operation.

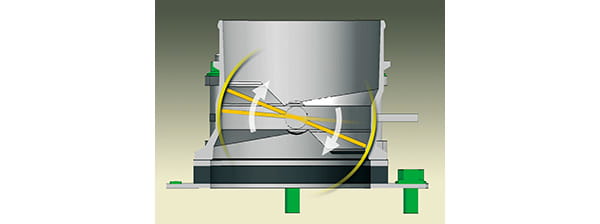

SPHERICAL BORE THROTTLE BODY

An 81mm spherical bore throttle body smoothes the turbulent airflow into the engine that occurs as the throttle begins to open. Providing a smoother airflow during acceleration results in increased throttle control and stable engine operation at low rpm.

O2 SENSOR FEEDBACK CONTROL SYSTEM

Both the DF300AP and DF250AP are equipped with an O2 Sensor Feedback Control system that enables emissions to be cleaner and more stable. The system controls the air to fuel ratio across each of the engine's operating ranges providing an optimum amount of fuel to the engine regardless of rpm.

FUEL COOLER

The cooler the fuel the denser it is, and the denser it is the better performance it delivers. Incorporating a fuel cooler in the DF300AP/250AP's fuel delivery system cools the fuel before it enters the engine. Providing the engine with an optimum fuel supply results in better combustion and more performance.

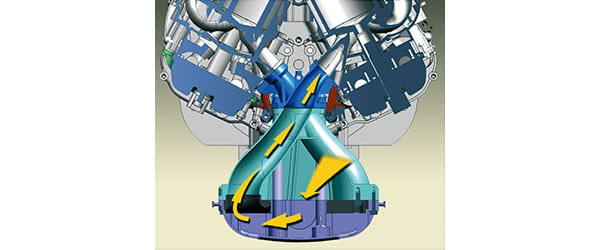

LONG TRACK INTAKE MANIFOLD

Another performance enhancing feature on the DF300AP/250AP is a tuned long track intake manifold. Using long intake pipes tuned to provide smooth airflow into the engine the system provides the DF300AP/250AP with enhanced low-end power.

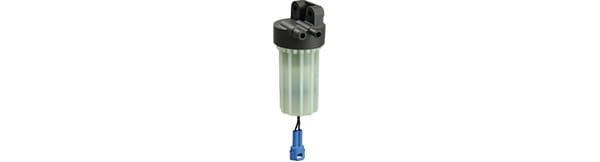

SUZUKI WATER DETECTING SYSTEM

Water in the fuel can be the source of poor combustion, lower power output, and corrosion. To help protect the engine from moisture in the fuel, the DF300AP/250AP is the first Suzuki outboard to utilize a water detecting fuel filter that alerts the operator with both visual and audio warnings when water is present in the fuel.

MODEL DF300AP ****
RECOMMENDED TRANSOM HEIGHT mm X:635, XX:762
STARTING SYSTEM Electric
WEIGHT (KG) ** X: 290, XX: 299
ENGINE TYPE DOHC 24-Valve
FUEL DELIVERY SYSTEM Mutli-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS V6 (55-degree)
PISTON DISPLACEMENT (cm3) 4,028
BORE X STROKE (mm) 98 x 89
MAXIMUM OUTPUT (kW) 220.7
FULL THROTTLE OPERATING RANGE (rpm) 5,700-6,300
STEERING Remote
OIL PAN CAPACITY (Lit.) 8.0
IGNITION SYSTEM Fully-transistorized
ALTERNATOR 12V 54A
ENGINE MOUNTING Shear Mount
TRIM METHOD Power Trim and Tilt
GEAR RATIO 2.08:1
GEAR SHAFT F-N-R (Drive-by-wire)
EXHAUST Through Prop-Hub Exhaust
PROPELLER SELECTION (Pitch)*** All propellers are the 3-blade type 15
MODEL DF250AP ****
RECOMMENDED TRANSOM HEIGHT mm X:635, XX:762
STARTING SYSTEM Electric
WEIGHT (KG) ** X: 290, XX: 299
ENGINE TYPE DOHC 24-Valve
FUEL DELIVERY SYSTEM Mutli-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS V6 (55-degree)
PISTON DISPLACEMENT (cm3) 4,028
BORE X STROKE (mm) 98 x 89
MAXIMUM OUTPUT (kW) 184.0
FULL THROTTLE OPERATING RANGE (rpm) 5,500-6,100
STEERING Remote
OIL PAN CAPACITY (Lit.) 8.0
IGNITION SYSTEM Fully-transistorized
ALTERNATOR 12V 54A
ENGINE MOUNTING Shear Mount
TRIM METHOD Power Trim and Tilt
GEAR RATIO 2.08:1
GEAR SHAFT F-N-R (Drive-by-wire)
EXHAUST Through Prop-Hub Exhaust
PROPELLER SELECTION (Pitch)*** All propellers are the 3-blade type 15
  • ** Dry weight: not including propeller and engine oil
  • *** Please inquire at your local dealer for details of the propeller
  • **** Suzuki Selective Rotation

The appearance, colors, and equipment of outboard motors may differ according to market and grade. Specifications may change without prior notice.

*Manufacture data
